12v Reverse Solenoid For 2 post Windlass Motors
Type: Reversing
Max Motor: 2000 watt, 200 amp
Supply: 12 volts
NOTE: Electrical product purchases are final. NO RETURNS

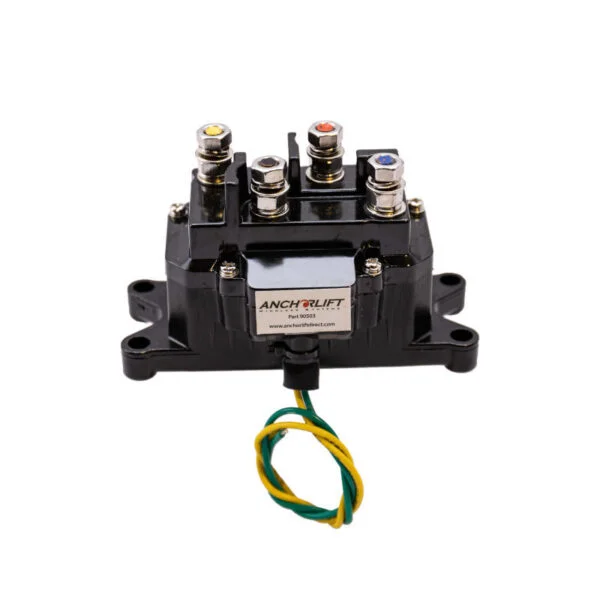

PLEASE NOTE: If you have a 12v windlass motor with 3 or 4 posts, replace with NEW part number: 90501(12v). Compare your existing solenoid to the photo above.
90503 Circuit Diagram – Print Version
2 Post Motor Wiring Diagram – Print Version
2 Post Motor Wiring Diagram with Accessories – Print Version
