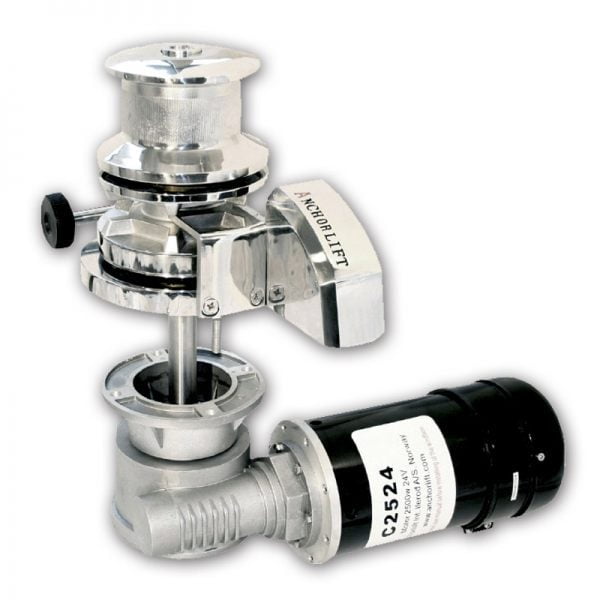

Aquarius 2500 Windlass with Capstan, 2500 watt, 24 volt. Boats from 55 – 90 ft.
Available Gypsy Sizes:
A2524C-10: 3/8” HT G43 / 10mm ISO Chain-Only Gypsy
A2524C-12/13: 12-13mm DIN766 ISO Chain-Only Gypsy
A2524C-13: 1/2” HT G43 / 13mm ISO Chain-Only Gypsy
Motor: 2500w, 24v
Max Working Load: 900kg / 1980lb.
Max Power Pull: 2000kg / 4400lb.
Speed Down: 35m / 115ft. min.
Speed Up: Normal load approx. 20m (65ft.) / min.
Amp Draw Down: 60amp
Amp Draw Up: 100amp Normal load
Chain Length: Most used 50m – 100m, 165ft. – 330ft.
Max Recommended Ground Tackle Weight: 550kg / 1210lb. Max ground tackle weight = 30% of max working load.
Circuit Breaker: 135amp
Cable Size: 50-75mm, 1/0 – 2/0awg
Switch Gear Required for Installation: Rocker Switch #90801, optional Footswitch #90900B
Deck Thickness: up to 190mm / 7.5″
Included with Purchase: Windlass Unit, Motor & Gearbox, Capstan, Solenoid, Circuit Breaker, Handle, Thread Locker, Hardware, Mounting Template and Installation Quick Guide.
These ship in two separate boxes.
Each unit is bench tested prior to shipping.
NOTE: If the boat is heavy for its size or is commercially used, please go up a size when choosing a windlass.
