B612 Specifications

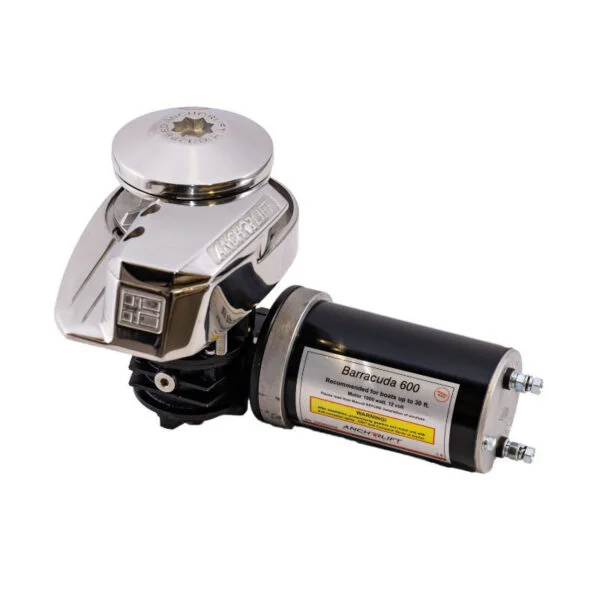

B612: Barracuda 600 Vertical Windlass for Boats up to 30ft.
Unit Weight: 16lb.
Shaft diameter: 14mm / .55in.
Designed for Boats: 6 to 9m / 20 to 30ft.
Boat Weight: up to 4,000kg / 8,800lb.
Electrical System: 12-Volt
Max Working Load: 180kg / 397lb.
Max Power Pull: 540kg / 1190lb.
Max Speed Down: 35m / 115ft. per minute.
Max Speed Up: 26m / 85 ft. per minute (under normal load using 6mm / 1/4” chain)
Chain Gypsy: 6MM DIN766 / 1/4″ HT G43 Windlass Marine Chain and 1/2″ Rope Gypsy
Chain Size: 6mm DIN 766 / 1/4″
Chain Length: 30 to 50m / 98 to 165ft.
Rope Size: 12mm / 1/2″
Anchors: 6 to 10kg / 13 to 22lb.
Ground Tackle Weight: 60kg / 132lb. Max ground tackle weight = 30% of max working load (The weight of chain, rope and anchor in total)
Motor: 1000watt, 12volt
Max Amp Draw: 75amp
Circuit Breaker: 80amp
Cable Size: 2 to 4 AWG (depending on cable length)
Deck Thickness: 20 to 35mm / 3/4 to 1.5″ (Up to 64mm / 2.5″ with customer supplied bolts)

Switch Gear Required for Installation: Rocker Switch #90801, optional Foot Switch #90900B

Recommended Rope/Chain Combinations: Galvanized ISO HT Grade 43 or Stainless-Steel Type 316L HT Grade S4 Windlass Marine Chain spliced to 24 Plait Double Braid Polyester or 8 strand Nylon rope.
See Rode Kits here: https://www.anchorliftdirect.com/product-category/rode-kits/

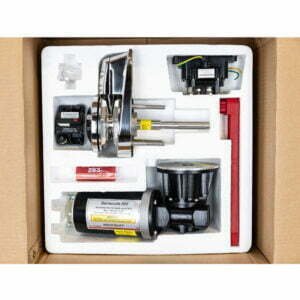

Included with Purchase: Windlass Unit, Motor & Gearbox, Solenoid, Circuit Breaker, Handle, Gear Box Backing Plate, EPDM Base Gasket, Thread Locker, Hardware, Mounting Template and Installation Quick Guide.

Each unit is bench tested prior to shipping.

NOTE: If the boat is heavy for its size or is used commercially, please select one model up when choosing a windlass.
