Dolphin 1000 Windlass (Boats up to 45 ft)

Windlass Installation Quick Guide

Dolphin Mounting Template

Dolphin 1000 Dimensional Drawing

Exploded View Diagram

Windlass Maintenance

Dolphin 1000 Comparison Chart

D1012 Specifications

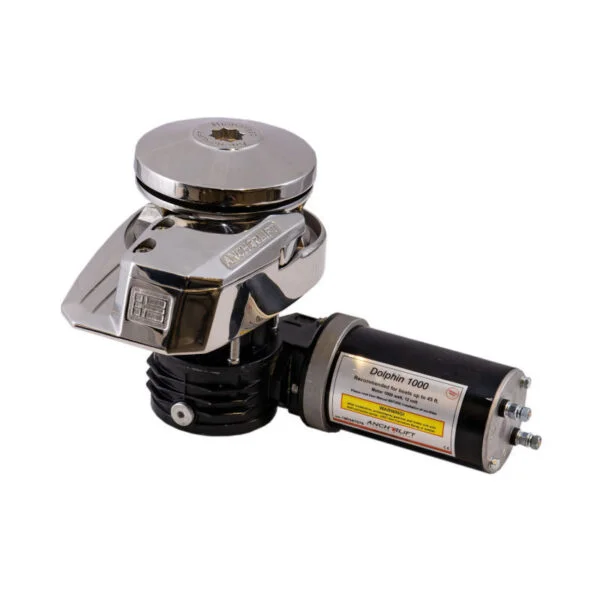

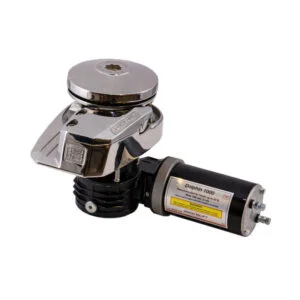

D1012: Dolphin 1000 Vertical Windlass for Boats up to 45ft.
Unit Weight: 25lb.
Shaft diameter: 18mm / .71in.
Designed for Boats: 11 to 14m / 35 to 45ft.
Boat Weight: up to 8,000kg / 17,600lb.
Electrical System: 12-Volt
Max Working Load: 250kg / 550lb.
Max Power Pull: 750kg / 1650lb.
Max Speed Down: 33m / 108ft. min. approx.
Max Speed Up: 20m / 66ft. min. (under normal load using 8mm / 5/16” chain)
Chain Gypsy: 8mm DIN766 / 5/16” HT G43 Windlass Marine Chain and 5/8″ Rope Gypsy
Chain Size: 8mm DIN 766 / 5/16″ HT G43
Chain Length: 30 to 50m / 98 to 164ft.
Rope Size: 16mm / 5/8″
Anchors: 10 to 15kg / 22 to 33lb.
Ground Tackle Weight: 60kg / 132lb. Max ground tackle weight = 30% of max working load (The weight of chain, rope and anchor in total)
Motor: 1000watt, 12volt
Max Amp Draw: 83amp
Circuit Breaker: 100amp
Cable Size: 2 to 4 AWG (depending on cable length)
Deck Thickness: 32 to 60mm / 1.25 to 2.5″ (Up to 90mm / 3.5″ with customer supplied bolts)

Switch Gear Required for Installation: Rocker Switch #90801, optional Foot Switch #90900B

Recommended Rope/Chain Combinations: Galvanized ISO HT Grade 43 or Stainless-Steel Type 316L HT Grade S4 Windlass Marine Chain spliced to 24 Plait Double Braid Polyester or 8 strand Nylon rope.
See Rode Kits here: https://www.anchorliftdirect.com/product-category/rode-kits/

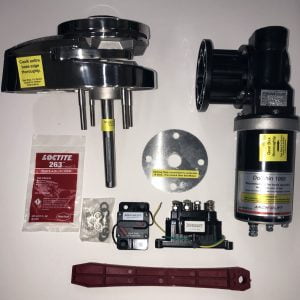

Included with Purchase: Windlass Unit, Motor & Gearbox, Solenoid, Circuit Breaker, Handle, Gear Box Backing Plate, EPDM Base Gasket, Thread Locker, Hardware,  Mounting Template and Installation Quick Guide.

Each unit is bench tested prior to shipping.

NOTE: If the boat is heavy for its size or is used commercially, please select one model up when choosing a windlass.
