Sale!
For 3 or 4 Post Motors
Solenoid for Windlass Motors with 3 or 4 Posts
Original price was: $191.00.$144.99Current price is: $144.99.
For Use With 3 and 4 Post Motors Only.
Operates anchor windlass system from 400 to 5000 watts 12 or 24 volts. The solenoids are reliable and compact in size. The external connections on the solenoids make them very easy to install. Brine Proof.
ATTENTION: For use with 3 and 4 post motors ONLY!
3 Post Motor Wiring Diagram – Print Version
4 Post Motor Wiring Diagram – Print Version
90501 – Solenoid
Type: Regular / Reverse
Max Motor: 3000 watt 400amp
Supply: 12 volts

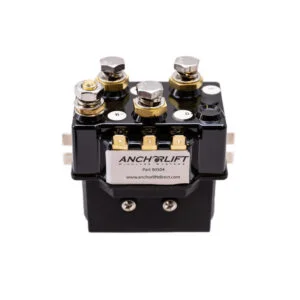

90504 – Solenoid
Type: Regular / Reverse
Max Motor: 3000 watt 400amp
Supply: 24 volts
NOTE: Electrical product purchases are final. NO RETURNS
| Weight | 3 lbs |
|---|---|
| Dimensions | 9 × 7 × 7 in |
| Solenoid | Solenoid 400 amp 12 volt, Solenoid 400 amp 24 volt |
